SS 304 Welded Pipes
SS 304 Welded Pipe these grades of austenitic stainless steels are the most versatile and widely used stainless steels. They exhibit excellent corrosion resistance to a wide range of corrosive environments. SS 304 and SS 304L grades of stainless steel pipe exhibit good machinability and have excellent weld-ability characteristics with or without the addition of filler metals.

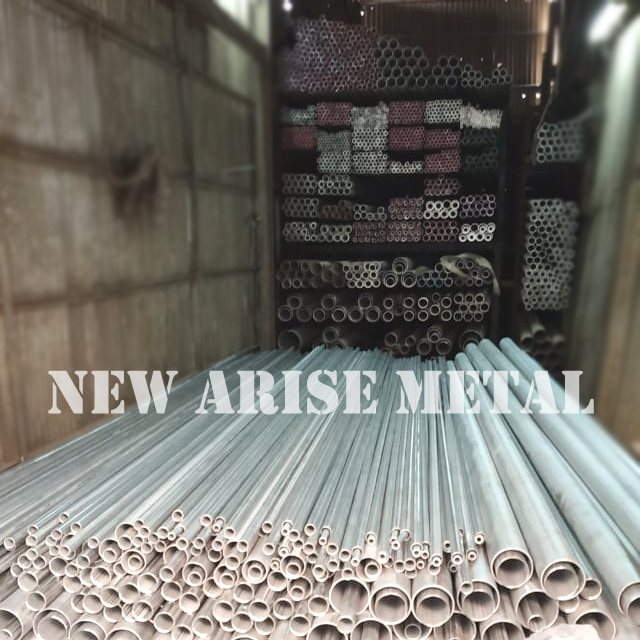

New Arise Metal is Major Stockist of SS 304 Welded Pipes from reputed manufacturer. We stock from many Indian Mills, Jindal, Ratnamani, Remi, Sonha (Imported) with MTC.
Contact us for best price on SS 304 Welded Pipes.
Inventory :
- Size - 1/2" to 16" NB x Sch 5, Sch 10, Sch 40 & Sch 80

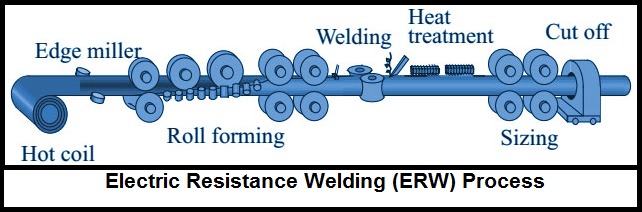

Electric Resistance Welding (ERW) Process :
In Electric Resistance Welding (ERW) process, pipe is manufactured by cold-forming a flat sheet of steel into a cylindrical shape. Then current is passed between the two edges of the steel cylinder to heat the steel to a point at which the edges are forced together to form a bond without the use of welding filler material.
Equivalent Grades for 304 Stainless Steel Welded Pipes :
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
SS 304 Welded Pipes Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Ni | |
| 304 | min. | – | – | – | – | – | 18.00 | 8.00 |
| max. | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 20.00 | 10.00 | |
Stainless Steel 304 Welded Pipe Mechanical Properties :
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HRB) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
Stainless Steel Welded Pipe Specifications :
SS Welded Pipes are available in different grades and standards. Some of the standard features these are made available in include
- Specifications : ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
- Dimensions : ASTM, ASME and API
- Size : 1/8″NB TO 30″NB IN
- SS Tubes : 1/2″ NB – 16″ NB
- SS ERW Tubes : 1/2″ NB – 24″ NB
- SS EFW Tubes : 6″ NB – 100″ NB
- Specialized in : Large Diameter Size
- Schedule : SCH 10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
- Form : Round, Square, Rectangular, Hydraulic Etc
- Length : Single Random, Double Random & Cut Length
- End : Plain End
- Type : Seamless / ERW / Welded / Fabricated
